Environment Modelling and Navigation for Robotic Space-Exploration

The Entern project uses  artificial landmarks to support the navigation in craters and caves. (Source: Stefan Haase, DFKI)
The Entern project uses artificial landmarks to support the navigation in craters and caves. (Source: Stefan Haase, DFKI)

The project Entern is concerned with technologies for the autonomous operation of robots in lunar and planetary exploration missions. It covers the subjects of operations & control, environment modelling and navigation. The goal of the project is to improve the autonomous capabilities of individually acting robots in difficult situations such as craters and caves. On-board simulation is used within the project for this purpose. It allows the robot to improve the assessment of critical situations without external help.

Duration: 01.10.2014 till 31.12.2017
Donee: German Research Center for Artificial Intelligence GmbH & University of Bremen
Sponsor: Federal Ministry for Economic Affairs and Climate Action
German Aerospace Center e.V.
Grant number: This project is funded by the Space Agency of the German Aerospace Center with federal funds of the Federal Ministry for Economic Affairs and Climate Action (BMWi) in accordance with the parliamentary resolution of the German Parliament, grant no. DFKI 50RA1406 (DFKI) and 50RA1407 (University of Bremen)
Partner: University of Bremen
Application Field: Space Robotics
Related Projects: iMoby
Intelligent Mobility (04.2009- 06.2012)
LIMES
Learning Intelligent Motions for Kinematically Complex Robots for Exploration in Space (05.2012- 04.2016)
VirGo4
Virtual state prediction for Groups of reactive autonomous Robots (04.2011- 06.2014)
Related Software: MARS
Machina Arte Robotum Simulans
Rock
Robot Construction Kit

Project details

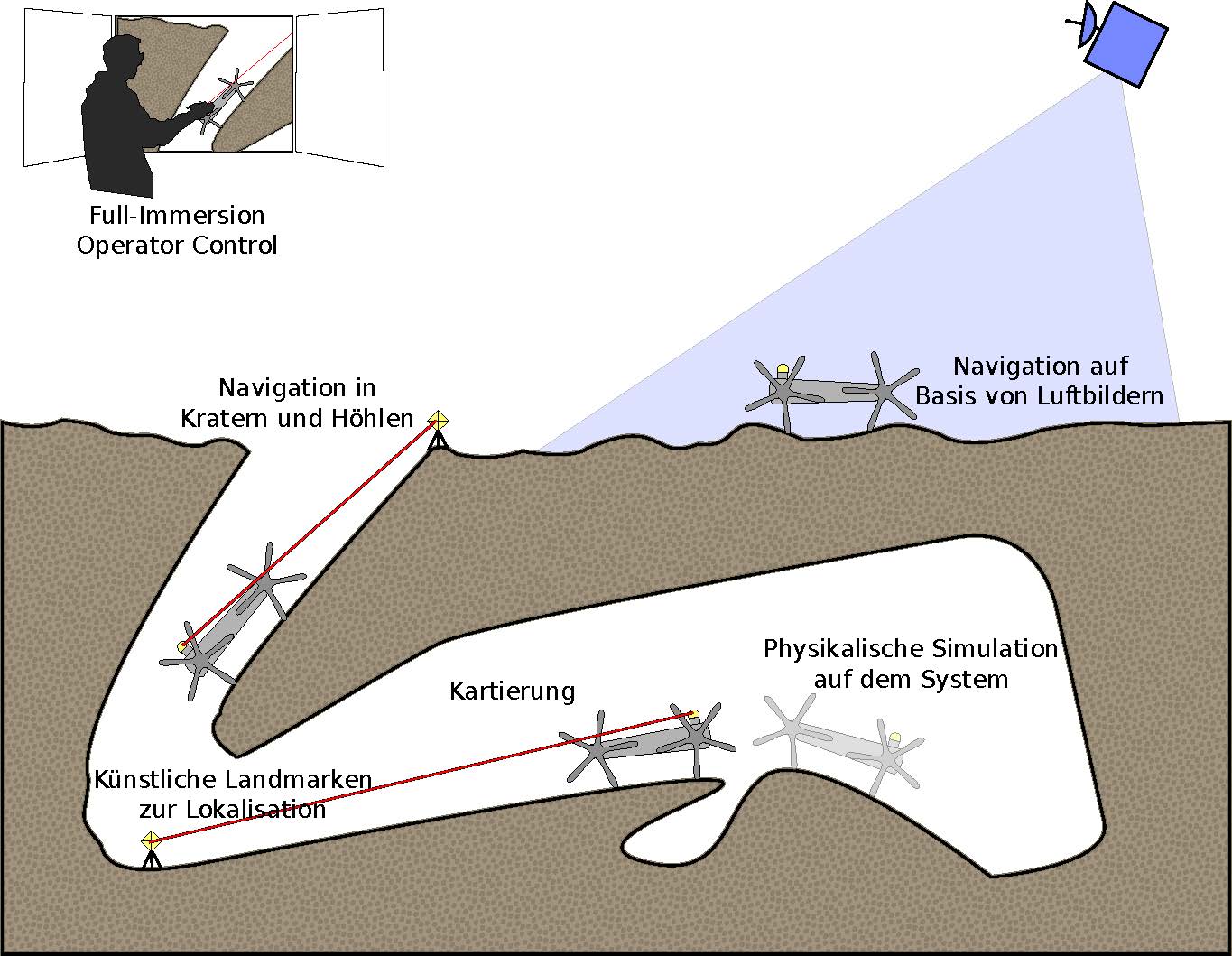

Overview of the aspects that are covered in the Entern project. (Source: Jakob Schwendner, DFKI)

The project Entern is concerned with robotic system for the use in lunar and planetary exploration missions. Specifically it covers technologies for the robust autonomous exploration of craters and caves in a context of space missions. These types of environments are of special interest to the scientific community and provide potential places for future infrastructures and habitats due to their protected locations.

The navigation in these areas puts special requirements onto the methods of navigation and mobile capabilities of the robots. The content of the Entern project is the development of software and hardware to allow semi and fully autonomous navigation of existing systems in such environments. For this purpose, the project covers the subjects of environment modelling, navigation and operations & control.

The scenario of the project covers the navigation to geographically interesting sites like caves or craters, based on orbiter or aerial imagery. To negotiate the complex and steep terrain at these locations, detailed physical simulations will be run on environment representations which are generated by the system. By using a common representation of the environment for simulation and for the navigation of the system, a solution for critical situations can be found either with the help of an operator or by autonomous on-board simulations on the system itself.

The development of an environment representation and required software tools as well as the integration with the simulation system to allow on-board simulation are core activities of the project. Additionally, the integration of a control station and connected relevant aspects like communication management and asynchronous mission management in relation to the target scenario will be covered. Navigation is another important aspect of the project. The project covers the specific difficulties of navigation in craters and caves. The mapping will be supported by artificial landmarks, and the resulting data can be referenced in existing geo information systems.

The methods developed in the project will be evaluated on the existing systems Asguard and CREX. These systems will be adapted in hard and software to fit the specific scenario requirements.

Videos

Field tests during the project ENTERN

Video-Vorschaubild
By playing the video, you accept YouTube's privacy policy.

Autonomous and remote-controlled navigation in a lava tube during the final field tests of the project Entern in 2017.

Publications

2018

Internal Simulation for Autonomous Robot Exploration of Lava Tubes
Raúl Domínguez, Sascha Arnold, Christoph Hertzberg, Arne Böckmann
Editors: Automation and Robotics Proceedings of the 15th International Conference on Informatics in Control
In ICINCO 2018, (ICINCO-2018), 29.7.-31.7.2018, Porto, SCITEPRESS, volume 2, pages 144-155, Jul/2018. ISBN: 978-989-758-321-6.
Adaptive Localization and Mapping for Planetary Rovers
Javier Hidalgo Carrió
2018. Universität Bremen.

2017

Climbing Steep Inclines with a Six-Legged Robot using Locomotion Planning
Janosch Machowinski, Arne Böckmann, Sascha Arnold, Christoph Hertzberg, Steffen Planthaber
In International Conference on Robotics and Automation, (ICRA), 29.5.2017, Singapore, IEEE, May/2017.
Gaussian Process Estimation of Odometry Errors for Localization and Mapping
Javier Hidalgo Carrió, Daniel Hennes, Jakob Schwendner, Frank Kirchner
In IEEE International Conference on Robotics and Automation, (ICRA), 29.5.-03.6.2017, Singapore, IEEE, 2017.

2016

On the Design of Attitude-Heading Reference Systems Using the Allan Variance
Javier Hidalgo Carrió, Sascha Arnold, Pantelis Poulakis
In IEEE Transactions on Ultrasonics, Ferroelectrics, and Frequency Control, o.A., volume 63, pages 656-665, Apr/2016.
EnviRe - Environment Representation for Long-term Autonomy
Javier Hidalgo Carrió, Sascha Arnold, Arne Böckmann, Anna Born, Raúl Domínguez, Daniel Hennes, Christoph Hertzberg, Janosch Machowinski, Jakob Schwendner, Yong-Ho Yoo, Frank Kirchner
In AI for Long-term Autonomy Workshop on the International Conference on Robotics and Automation (ICRA), (ICRA-16), 16.5.-20.5.2016, Stockholm, o.A., 2016.

2015

Environment Representation: Antecedents and Directions
Javier Hidalgo Carrió, Sascha Arnold, Raúl Domínguez, Yong-Ho Yoo, Arne Böckmann, Anna Born, Behnam Asadi
series DFKI Documents, volume 15-03, Sep/2015. DFKI GmbH.
On-Board Simulator for Autonomy Enhancement in Robotic Space Missions
Raúl Domínguez, Jakob Schwendner, Frank Kirchner
In Symposium on Advanced Space Technologies in Robotics and Automation (ASTRA), (ASTRA), 11.5.-13.5.2015, Noordwijk, inproceedings ASTRA, 2015.
Entern -- Environment Modelling and Navigation for Robotic Space-Exploration
Jakob Schwendner, Javier Hidalgo Carrió, Raúl Domínguez, Steffen Planthaber, Yong-Ho Yoo, Behnam Asadi, Janosch Machowinski, Christian Rauch, Frank Kirchner
In Symposium on Advanced Space Technologies in Robotics and Automation (ASTRA), (ASTRA), 11.5.-13.5.2015, Noordwijk, inproceedings ASTRA, 2015.
First Experimental Investigations on Wheel-Walking for Improving Triple-Bogie Rover Locomotion Performances
Martin Azkarate, Martin Zwick, Javier Hidalgo Carrió, Robin Nelen, Tim Wiese, Pantelis Poulakis, Luc Joudrier, Gianfranco Visentin
In Advanced Space Technologies for Robotics and Automation, (ASTRA), 11.5.-13.5.2013, Noordwijk, inproceedings ASTRA, 2015.
